air Gateway

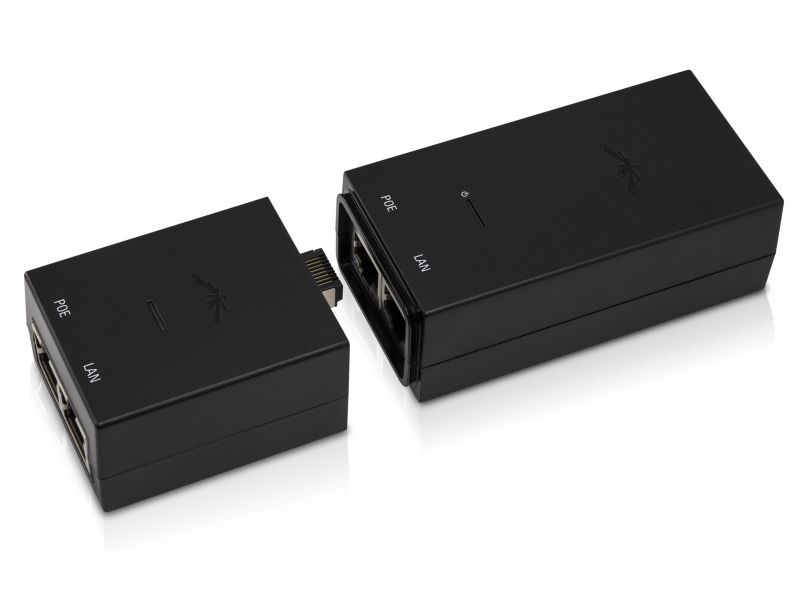

airGateway is an easy, affordable way to extend airMAX CPE deployments with indoor Wi-Fi. airGateway™s interlocking design and PoE passthrough make it a flexible and convenient option for airMAX users.

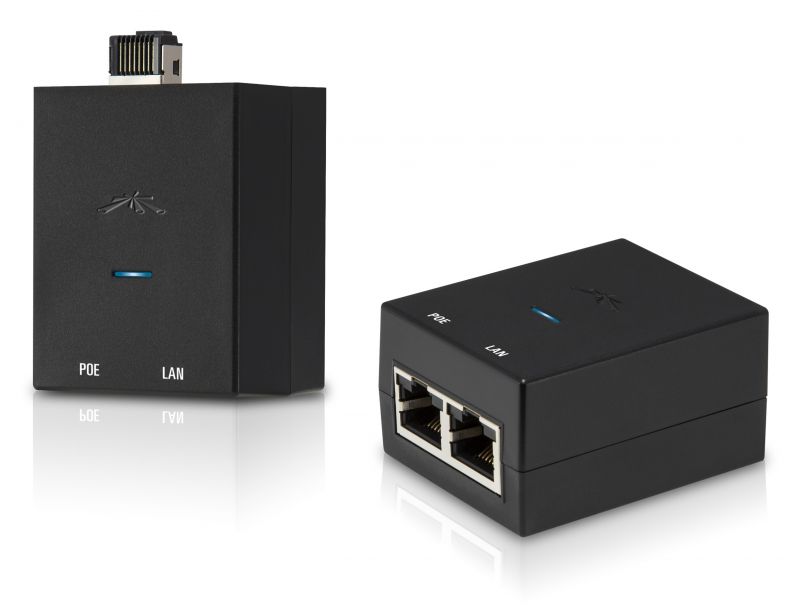

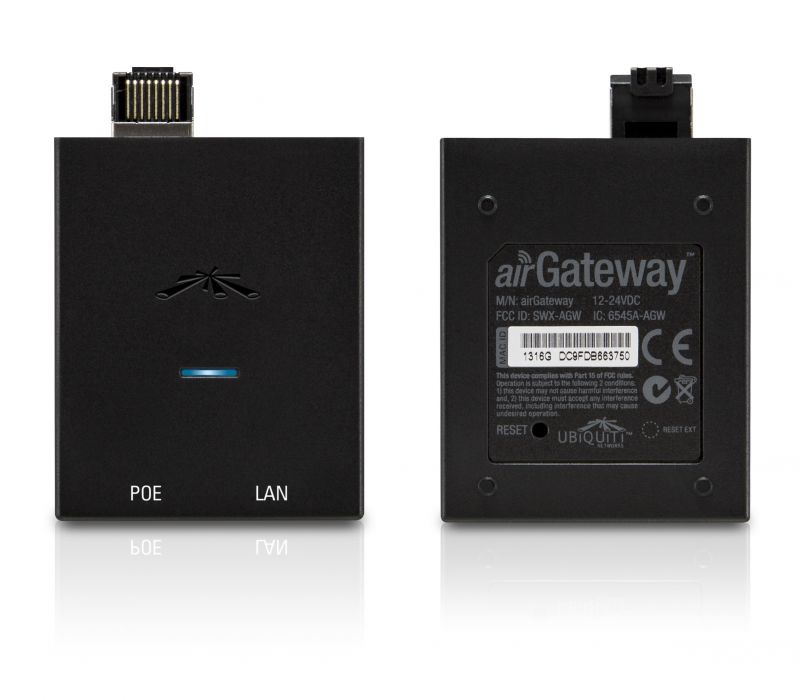

The airGateway™ is an affordable product with a compact form factor. It simultaneously connects indoor client devices and powers the outdoor CPE (Customer Premises Equipment). The airGateway is available in two different models: the airGateway, which is the standard model with an internal antenna, and the airGateway-LR, which includes an external antenna for extended range.
- Brand:
Ubiquiti
-
Code: AGW
Available
| Processor Specs | Atheros MIPS 24KC, 400 MHz |
| Memory | 32 MB DDR1 |
| Regulatory/Compliance Information | |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Physical/Electrical/Environmental | |
| Dimensions | 54 × 44 × 30 mm |
| Weight | 56 g |
| Enclosure Characteristics | Polycarbonate |
| Networking Interface | (2) 10/100 Ethernet Ports |
| Connector | (1) Male RJ-45 Connector |
| Buttons | Reset, Reset Ext |
| Antenna | Internal 2.4 GHz Antenna |
| System LED | Dual-Color |
| Wi-Fi Standards | 802.11 b/g/n |
| Operating Frequency | 2.412 GHz to 2.484 GHz |
| Maximum Power Consumption | 4 W |
| Maximum TX Power | 18 dBm |
| Power Method | PoE Adapter, 15 / 18 / 24VDC (Not Included) |
| ESD/EMP Protection | 24kV RJ-45 Interface |
| Operating Temperature | -10 to 60°C |
| Operating Humidity | 5 to 95% Noncondensing |
| Supported Data Rates | |
| Standards Data Rates | 802.11n 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
