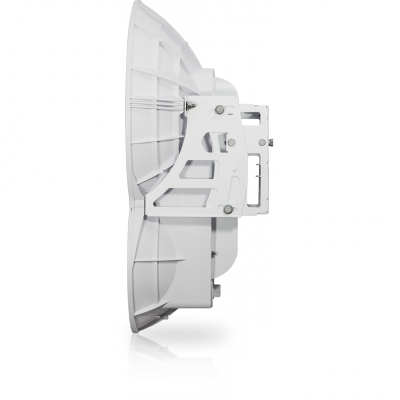

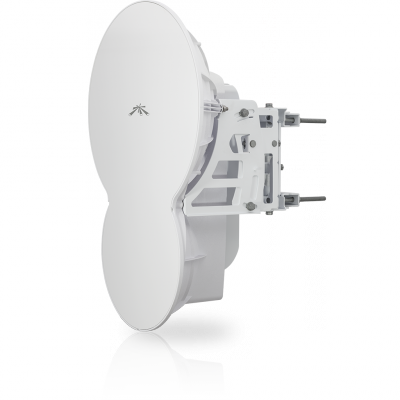

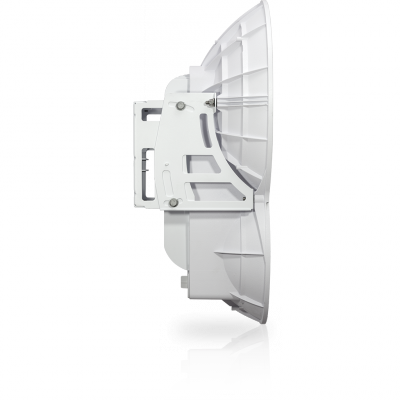

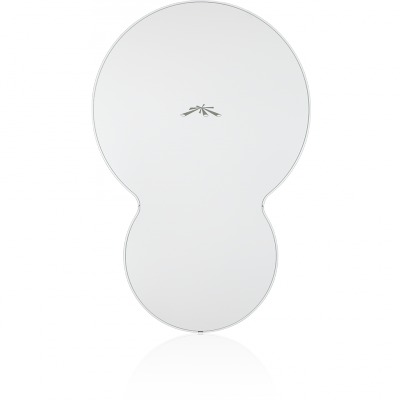

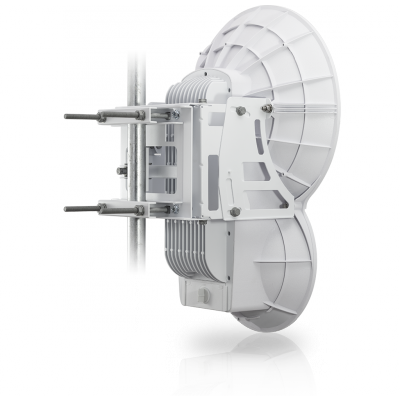

airFiber 24
Introducing airFiber, a truly revolutionary 24 GHz Point-to-Point radio from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 1.4+ Gbps, aggregate throughput and 13+ km in range. airFiber ushers in a new era in price disruptive, carrier-class backhaul technology.
- Brand:
Ubiquiti
-
Code: airFiber-24
Available
| AIRFIBER AF24 | |
| Operating Frequency | 24.05 – 24.25 GHz |
| Dimensions | 649 x 426 x 303 mm |
| Weight | 10.5 kg (Mount Included) |
| Maximum Power Consumption | < 50W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Certifications | CE, FCC, IC |
| Mounting | Pole Mount Kit (Included) |
| Operating Temperature | -40 to 55°C (-40 to 131° F) |
| LEDs | (8) Status LEDs: Data Port Speed |
| INTERFACE | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| SYSTEM | |
| Maximum Throughput | 1.4+ Gbps |
| Maximum Range | 13+ km |
| Packets per Second | > 1 Million |
| Encryption | 128-Bit AES |
| Forward Error Correction | 164/205 |
| Cyclic Prefix | 1/16 Fixed |
| Uplink/Downlink Ratio | 50% Fixed |
| RADIO FREQUENCY | |
| GPS | GPS Clock Synchronization |
| EIRP | ~33 dBm (FCC/IC), ~20 dBm (CE) |
| Frequency Accuracy | ±2.5 ppm without GPS Synchronization |
| Channel Bandwidth | 100 MHz |
| Operating Channels | 24.1 GHz, 24.2 GHz |
| Modulation | 64QAM MIMO |
| INTEGRATED SPLIT ANTENNA | |
| TX Gain | 33 dBi |
| RX Gain | 38 dBi |
| Beamwidth | < 3.5° |
| Front-to-Back Ratio | 70 dB |
| Polarity | Dual-Slant Polarization |
| Cross-Polarity Isolation | > 28 dB |
