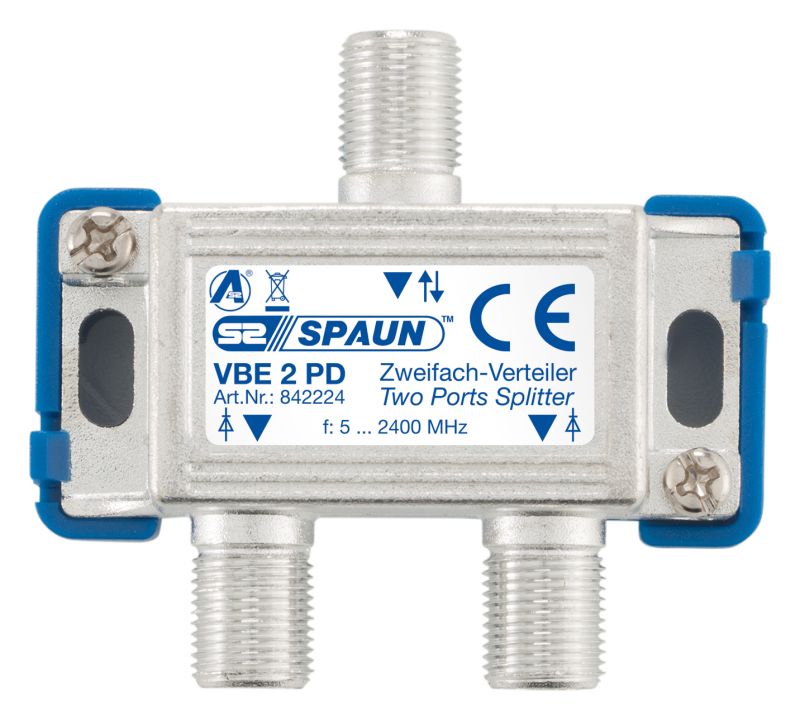

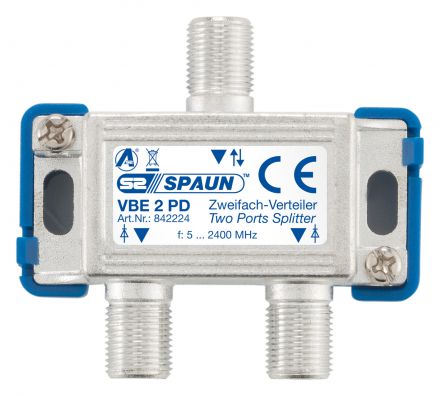

| Model | VBE 2 P | VBE 4 P | VBE 2 PD | VBE 3 PD | VBE 4 PD | VBE 6 PD | VBE 8 PD |
| Art. No. | 842223 | 842234 | 842224 | 842226 | 842228 | 842230 | 842232 |
| EAN | 4040326422236 | 4040326422342 | 4040326422243 | 4040326422267 | 4040326422281 | 4040326422304 | 4040326422328 |
| Tap | 2-fach | 4-fach | 2-fach | 3-fach | 4-fach | 6-fach | 8-fach |
| Through loss | |||||||
| 5 ... 40 MHz | 4,5 dB | 8,5 dB | 4,5 dB | 7,5 dB | 8,5 dB | 11,5 dB | 12 dB |
| 40 ... 1000 MHz | 4,5 dB | 9 dB | 5 dB | 8 dB | 9 dB | 13 dB | 14 dB |
| 1000 ... 2400 MHz | 5 dB | 11 dB | 6,2 dB | 10,5 dB | 11 dB | 16,5 dB | 16 dB |
| Return loss | |||||||
| 5 ... 40 MHz | 18 dB | 22 dB | 18 dB | 20 dB | 22 dB | 22 dB | 22 dB |
| 40 ... 1000 MHz | 20 dB | 20 dB | 20 dB | 20 dB | 20 dB | 21 dB | 21 dB |
| 1000 ... 2400 MHz | 20 dB | 20 dB | 20 dB | 20 dB | 20 dB | 20 dB | 20 dB |
| DC-pass max. | 30 V / 1 A | ||||||
| Ambient temperature | -20 ... +50 В°C | ||||||
| Dimensions (mm) | 56 x 50 x 28 | 78 x 50 x 28 | 56 x 50 x 28 | 78 x 50 x 28 | |||
