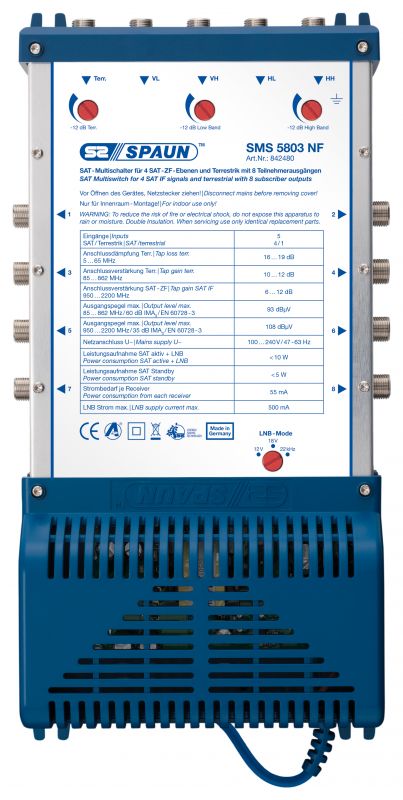

SMS 5803 NF
Compact multiswitch for 4 SAT-IF signals with passive return path and active forward path 8 subscribers
- Brand:
SPAUN
-
Code: SMS 5803 NF
Available
| Model Art. No. | SMS 5603 NF 842479 | SMS 5803 NF 842480 | SMS 51203 NF 842481 | SMS 51603 NF 842482 | SMS 52403 NF 842489 |
| EAN | 4040326423790 | 4040326424803 | 4040326424810 | 4040326424827 | 4040326424896 |
| Inputs SAT / Terrestrial | 5 4 / 1 | ||||
| Outputs / subscribers | 6 | 8 | 12 | 16 | 24 |
| Tap loss Terr. passiv: 5 ... 65 MHz | 16 ... 19 dB | 16 ... 19 dB | 18 ... 22 dB | 21 ... 23 dB | 26 ... 28 dB |
| Tap gain Terr. aktiv: 85 ... 862 MHz | 10 ... 12 dB | 10 ... 12 dB | 9 ... 11 dB | 8 ... 10 dB | 4 ... 6 dB |
| Tap gain SAT IF: 950 ... 2200 MHz | 5 ... 11 dB | 6 ... 12 dB | 4 ... 10 dB | 3 ... 9 dB | 0 ... 6 dB |
| Output level max. 85 ... 862 MHz 60 dB IMA3 / EN 60728-3 | 93 dB|jV | 93 dB|jV | 90 dB|jV | 88 dB|jV | 84 dB|jV |
| Output level max. 950 ... 2200 MHz 35 dB IMA3 / EN 60728-3 | 108 dB|jV | 108 dB|jV | 106 dB|jV | 105 dB|jV | 102 dB|jV |
| Selection | |||||
| SAT / terrestrial | > 45 dB | ||||
| Terrestrial / SAT | > 40 dB | ||||
| Rejection | |||||
| Switching isolation | > 35 dB | ||||
| Receiver/ receiver | > 36 dB/VHF, > 32 dB/UHF, > 35 dB/SAT | ||||
| Mains power supply V~ | 100 ... 240 V / 47 - 63 Hz | ||||
| Power consumption Terrestrial active/SAT active + LNB | < 10 W | ||||
| Power consumption SAT standby | < 5 W | ||||
| Current consumption LNB max. | 500 mA | ||||
| Current consumption from each receiver | 55 mA | ||||
| Ambient temperature | -20 ... +50 В°C | ||||
| Dimensions (mm) | 240 x 130 x 56 | 260 x 130 x 56 | 300 x 130 x 56 | 340 x 130 x 56 | 420 x 130 x 56 |
