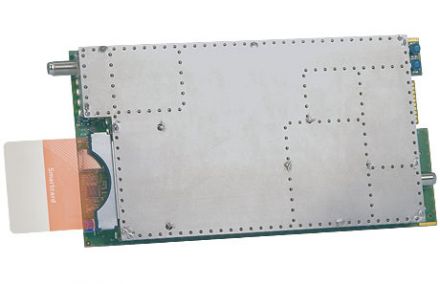

DVB-S2 into DVB-T with CI
Conversion several programmes from a DVB-S2 or DVB-S transponder into a DVB-T channel.
- Brand:
Polytron
-
Code: SPM-S2T
Available
| Technical data | |
| Type | SPM-S2T |
| Article No. | 5529700 |
| Input | |
| Input frequency range | 950 - 2150 MHz |
| Input level | 50 - 70 dBВµV |
| LNB control | 14/18 V / 22kHz / DiSEqC |
| LNB supply current | 12 V / 250 mA |
| Demodulation | 8PSK / QPSK |
| Symbolrate DVB-S | 2 - 40 MS/s |
| Symbolrate DVB-S2 | 2 - 30 MS/s |
| Interface | CI |
| Output | |
| Output frequency range | 112 - 860 MHz |
| Modulation | DVB-T (COFDM) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| MER (8k / 64 QAM) | > 34 dB |
| Output level | 90 dBВµV |
| Variable attenuator | 0 - 10 dB |
| Power consumption | 12 W |
| Weight | 0,6 kg |
