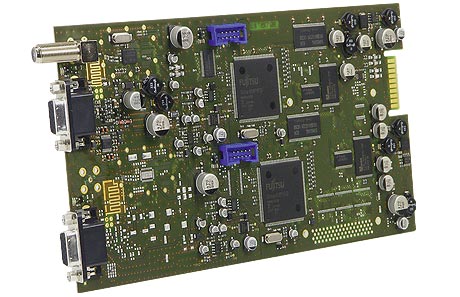

DVB-S into AV, twin module
DVB-S receiving module for the conversion of QPSK modulated programmes into AV signals. Supports simultaneous conversion of two programmes from a MPEG2 data stream.
- Brand:
Polytron
-
Code: SPM-PST
Available
| Technical data | |
| Type | SPM-PST |
| Article no. | 5527660 |
| Modulation | DVB-S (QPSK) |
| Frequency range | 950-2150 MHz |
| Input level | 47-70 dBВµV |
| Symbol rate | 2-40 MS/s |
| FEC | gemäß DVB / according to DVB |
| code rate (auto.) | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Audio level | -6 / -3 / 0 / 3 / 6 (einstellbar / adjustable) |
| Video level | 1 Vpp / 75 Ohm |
| Connection | 15-polig SUB-D-Buchse / 15-pin female SUB-D |
| Power consumption | 8 W |
