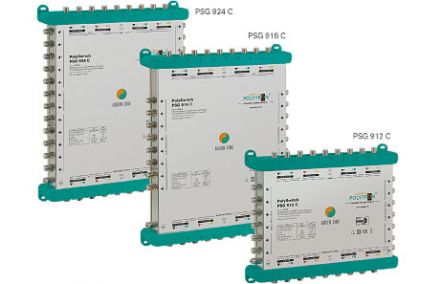

PSG 924 C
Cascadable multiswitch for distribution of 8 SAT IF polarisations. (e.g. ASTRA + Hotbird) and terrestrial signals.
- Brand:
Polytron
-
Code: PSG 924 C
Available
| Technical data | ||||
| Type | PSG 908 C | PSG 912 C | PSG 916 C | PSG 924 C |
| Article no. | 9268010 | 9268030 | 9268040 | 9268050 |
| Inputs | 8 SAT, 1 TERR | |||
| Outputs | 8 | 12 | 16 | 24 |
| Through lossВ TERR 40-862 MHz | 6 dB | 5 dB | 5 dB | 5 dB |
| Through lossВ SAT 950-2500 MHz | 5 dB | 6 dB | 6 dB | 6 dB |
| Tap loss Terr. 40-862 MHz | 6 dB | 8 dB | 3 dB | 3 dB |
| Tap loss SAT 950-2500 MHz | 3 dB | 3 dB | 4 dB | 4 dB |
| Switching commands | 14 V / 18 V / 22 kHz / DiSEqC 2.0 | |||
| Isolation Horz. / Vert. | 28 dB | 28 dB | 28 dB | 28 dB |
| Isolation SAT / Ter. | 28 dB | 28 dB | 28 dB | 28 dB |
| Output level TAP [@ 35 dB IMA 3] | 100 dBВµV | 100 dBВµV | 100 dBВµV | 100 dBВµV |
| Operation temperature | -20...+50 В°C | |||
| Dimensions (W x H x D) [mm] | 254 x 157 x 49 | 254 x 214 x 49 | 254 x 322 x 49 | 254 x 322 x 49 |
| Weight | 1,2 kg | 1,4 kg | 1,8 kg | 1,9 kg |
